Victron BlueSolar 190Wp Monocrystalline Solar Panel

Victron BlueSolar 190Wp Monocrystalline Solar Panel

€133,00 EUR
€133,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Victron BlueSolar 190Wp monocrystalline solar panel is a robust glass panel for campers, boats, and other off-grid installations. Its anodized aluminum frame, tempered glass, and bypass diodes make it suitable for fixed mounting in various conditions.

  • 190Wp nominal power
  • Monocrystalline solar cells

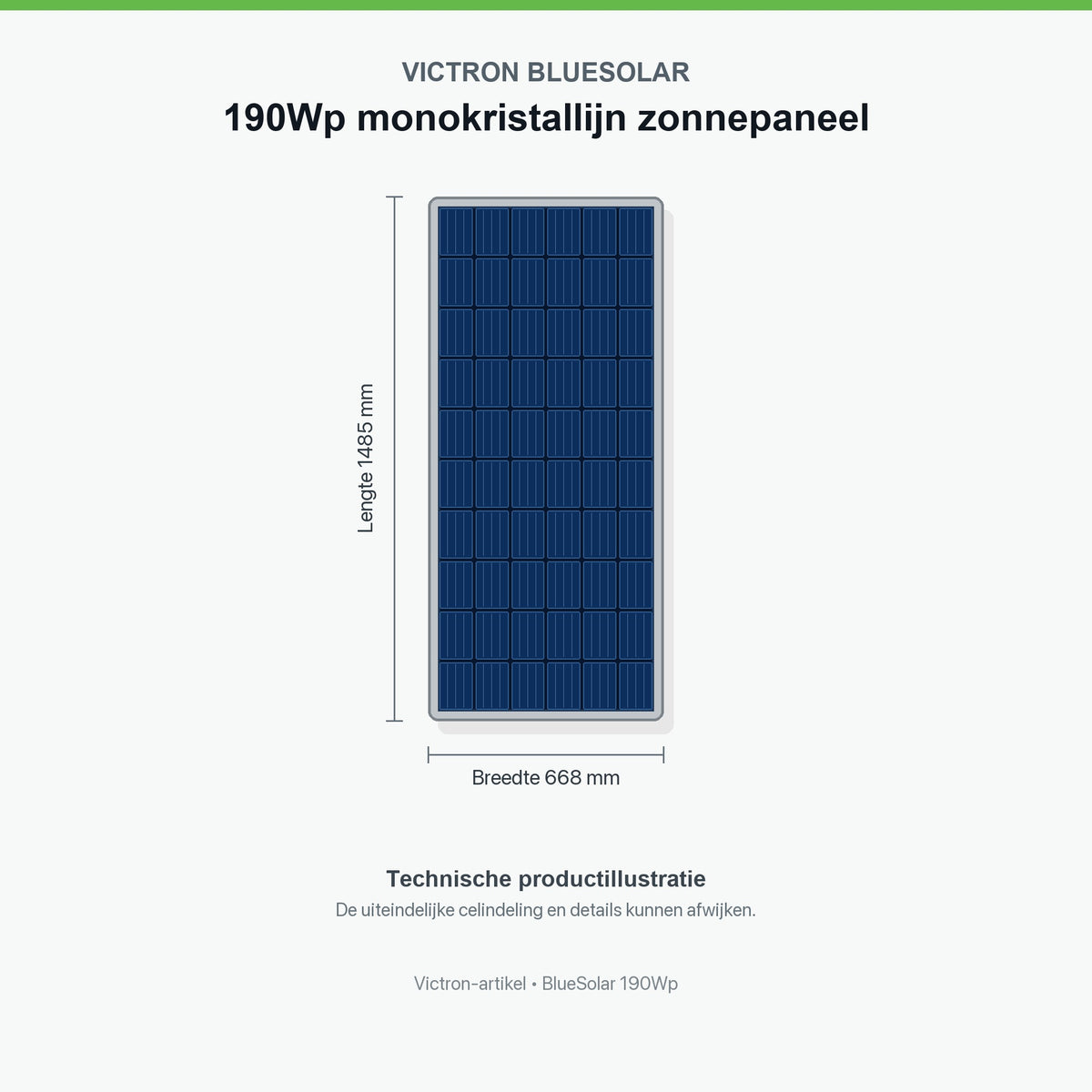

  • Dimensions: 1485 × 668 × 30 mm
  • Weight: 10.5 kg
Why this Victron BlueSolar panel?
  • Good low-light performance and sensitivity across a broad light spectrum.
  • Waterproof junction box and bypass diodes to minimize power loss due to partial shading.
  • Sturdy aluminum frame and tempered glass for fixed mounting.
  • Integrates well with Victron MPPT charge controllers and VictronConnect.

The actual yield depends on the season, solar irradiation, shade, mounting direction, and the battery's state of charge.

Specifications and dimensions
Power
190Wp
Cell type
Monocrystalline
Vmp
21.8V
Imp
8.71A
Voc
25.5V
Isc
9.17A
Dimensions
1485 × 668 × 30 mm
Weight
10.5 kg
What else do you need?
  1. Charge controller: Victron SmartSolar MPPT 75/15 for a single panel on a 12V battery installation.
  2. Solar cable: 4mm², 2 × 5m with connectors.
  3. Battery cable and fuse: Battery cable set 6mm² 2 × 1m + 25A fuse, with the fuse close to the battery or positive busbar.
  4. Roof gland: choose a suitable roof gland for routing the cable indoors.
  5. Cable management: use UV and weather-resistant adhesive mounts and cable ties.

Never connect a solar panel directly to the battery. Always use a correctly sized charge controller and protection.

Mounting on a camper, boat, or frame

Camper van: preferably use aluminum Z-brackets on a corrugated or slightly curved metal roof.

Boat: plastic corner mounts are a practical choice on a suitable flat deck.

Flat camper roof: use the Solara ABS spoiler 68 cm white. Preferably position the panel lengthwise along the vehicle, with the short sides front and back, so the front spoiler directs the airflow over the panel.

Measure available space beforehand, considering roof hatches, ventilation, rails, and mounting hardware. Carefully degrease the surface, use appropriate construction adhesive and primers, and seal all cable entries watertight.

Use with a 24V battery

A single panel has insufficient operating voltage for a 24V battery; multiple panels must be used in series.

In a 24V system, the same MPPT can handle approximately twice the solar panel power as with 12V, but only when panel voltage, maximum open-circuit voltage, and wiring are appropriate.

Common mistakes
  • Connecting the panel directly to the battery.
  • Focusing only on wattage and forgetting panel voltage or Voc.
  • Using a cable that is too thin or missing a fuse.
  • Combining panels with different electrical properties without verification.
  • Not accounting for shade, roof obstructions, and space for mounting.
