Victron BlueSolar 150Wp Monocrystalline Solar Panel

Victron BlueSolar 150Wp Monocrystalline Solar Panel

€132,00 EUR
€132,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Victron BlueSolar 150Wp monocrystalline solar panel is a robust glass panel for campers, boats, and other off-grid installations. Its anodized aluminum frame, tempered glass, and bypass diodes make it suitable for fixed mounting in various conditions.

  • 150Wp nominal power
  • Monocrystalline solar cells

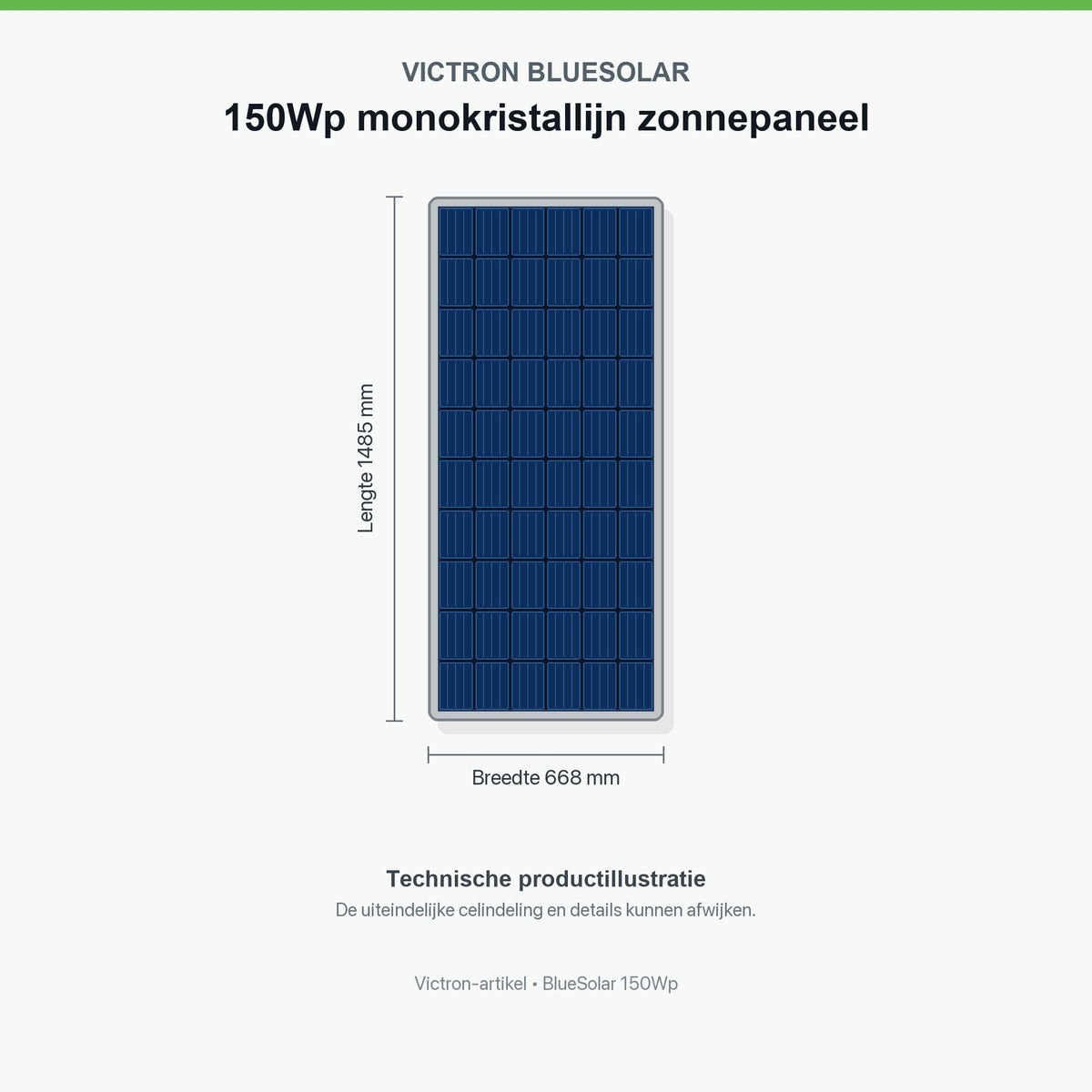

  • Dimensions: 1485 × 668 × 30 mm
  • Weight: 11 kg
Why this Victron BlueSolar panel?
  • Good performance in low light and sensitivity over a wide light spectrum.
  • Waterproof junction box and bypass diodes to limit power loss due to partial shading.
  • Sturdy aluminum frame and tempered glass for fixed mounting.
  • Integrates well with a Victron MPPT charge controller and VictronConnect.

Actual yield depends on season, solar irradiance, shading, mounting direction, and battery charge status.

Specifications and dimensions
Power
150Wp
Cell type
Monocrystalline
Vmp
18.2V
Imp
8.25A
Voc
22.3V
Isc
8.69A
Dimensions
1485 × 668 × 30 mm
Weight
11 kg
What else do you need?
  1. Charge controller: Victron SmartSolar MPPT 75/15 for one panel on a 12V battery installation.
  2. Solar cable: 4mm², 2 × 5m with connectors.
  3. Battery cable and fuse: Battery cable set 6mm² 2 × 1m + 25A fuse, with the fuse close to the battery or positive distribution block.
  4. Roof gland: choose a suitable roof gland for the cable routing inside.
  5. Cable management: use UV and weather-resistant adhesive mounts and cable ties.

Never connect a solar panel directly to the battery. Always use a correctly sized charge controller and protection.

Mounting on a camper, boat or frame

Panel van: preferably use aluminum Z-brackets on a ribbed or slightly curved metal roof.

Boat: plastic corner mounts are a practical choice on a suitable flat deck.

Flat camper roof: use the Solara ABS spoiler 68 cm white. Preferably position the panel lengthwise on the vehicle, with the short sides front and back, so that the front spoiler guides the airflow over the panel.

Measure the available space beforehand and consider roof hatches, ventilation, rails, and mounting materials. Carefully degrease the surface, use suitable construction adhesive and primers, and seal all penetrations watertight.

Use with a 24V battery

A single panel has insufficient operating voltage for a 24V battery; use multiple panels in series.

In a 24V system, the same MPPT can handle approximately twice as much solar panel power as with 12V, but only when panel voltage, maximum open-circuit voltage, and wiring are suitable.

Common mistakes
  • Connecting the panel directly to the battery.
  • Only paying attention to wattage and forgetting panel voltage or Voc.
  • Using a cable that is too thin or missing a fuse.
  • Combining panels with different electrical properties without verification.
  • Not accounting for shading, roof obstructions, and space for mounting.
