  • Victron Smart Battery Protect 12/24V-220A
1 1

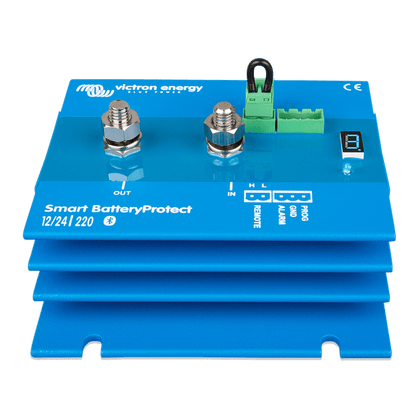

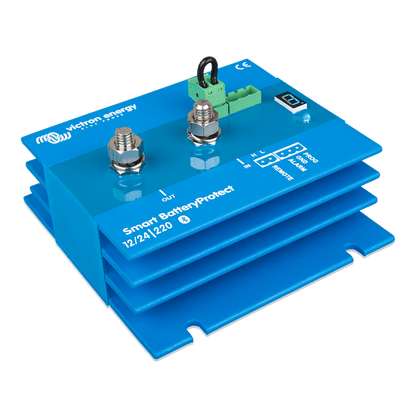

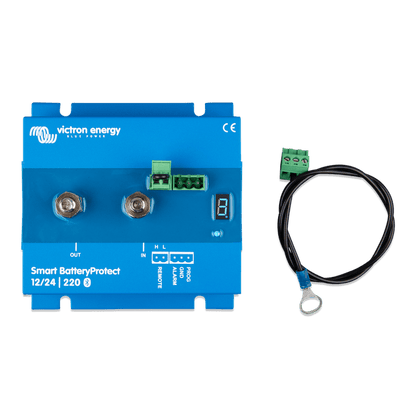

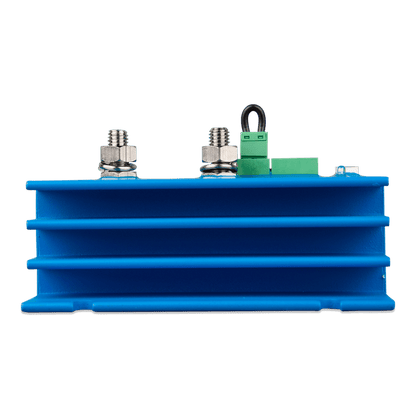

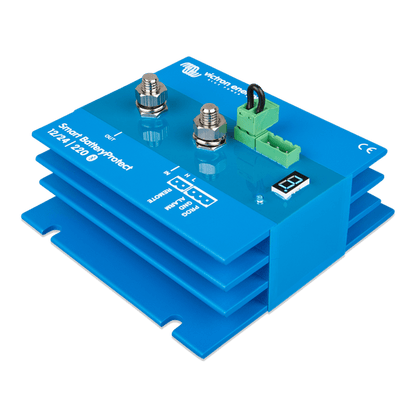

Victron Smart Battery Protect 12/24V-220A

Victron Smart Battery Protect 12/24V-220A

In stock

€109,00 EUR
€137,00 EUR €109,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Secure payment
  • American Express
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
✓
Leverbaar binnen 2–4 werkdagen
Niet op voorraad in Raalte; afhalen kan na bestelling. Bestel vooraf; we laten weten zodra het klaarligt.
Specialist in motorhome electrics Practical knowledge and experience since 2014
Carefully selected Components we trust and use ourselves
Personal Support One point of contact for questions about your order

The Victron Smart Battery Protect 12/24V-220A protects a battery against deep discharge by disconnecting non-critical DC loads in time. The device is suitable for 12/24V systems and a continuous load of up to 220 A.

Key features
  • Protection against low battery voltage and deep discharge
  • MOSFET switching without relay contacts
  • Automatic detection of the system voltage
  • Remote on/off connection for external control
  • Bluetooth programming and monitoring via VictronConnect
Specifications
System voltage 12/24 V
Maximum continuous current 220 A
Function Load protection / low voltage protection
Operation VictronConnect via Bluetooth and remote on/off
Application and system selection

A BatteryProtect is intended to disconnect DC loads when the battery voltage becomes too low. The device is not a full lithium BMS. In a lithium system, the BMS functions and the allowed control of the BatteryProtect must be coordinated.

Installation and points to consider

Mount the BatteryProtect as close as possible to the battery in the positive cable to the loads. Use suitable cables and a correctly sized fuse. Consult the current Victron manual before connection and avoid using it as a circuit breaker between a charging source and the battery.
