Victron Multiplus II 48/3000/35-32 GX
Victron Multiplus II 48/3000/35-32 GX
In stock
Couldn't load pickup availability
Niet op voorraad in Raalte; afhalen kan na bestelling. Bestel vooraf; we laten weten zodra het klaarligt.

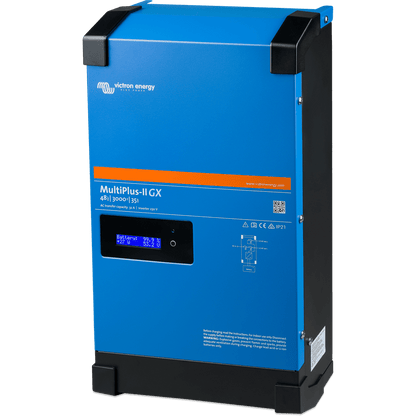

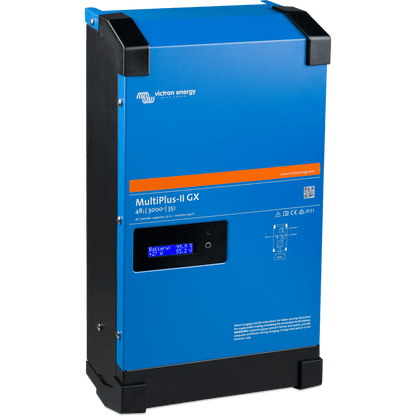

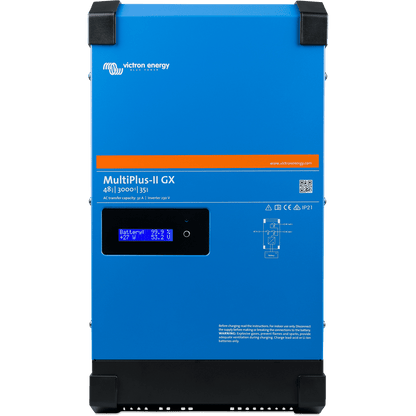

Victron MultiPlus-II 48/3000/35-32 GX Inverter/Charger - Pure Sine Wave, 3000VA, 35A Charger
Product information and features
Description ▾
The Victron MultiPlus-II 48/3000/35-32 GX adds advanced monitoring and system management to the standard version. This model offers the same powerful functionality as the 48/3000/35-32, with the added GX module for real-time monitoring and management via the VRM app.
Installation:
- Use a 35mm² battery cable (not included) for connection.
- Recommended DC fuse: 125A
- Install in a well-ventilated area to prevent overheating.
Use:
- Complete system control via the GX functionality, ideal for larger installations.
- PowerAssist prevents overload by drawing power from the battery when needed.
- Seamless transition to battery power during a power outage.
Add the Victron MultiPlus-II 48/3000/35-32 GX to your cart today and experience the ultimate power solution for your camper or boat! Do you have questions? Contact us for more information.
Features ▾
- GX integration: Complete monitoring and control of your system via the VRM platform.
- PowerAssist: Supports peak current to prevent overload.
- Search mode: Saves energy at low loads by reducing consumption by 70%.
-
UPS function: Seamless switchover to battery power during a power outage.
Specifications ▾
- Input voltage: 48VDC
- Output voltage: 230VAC
- Output power: 3000VA / 2400W
- Peak power: 5500W
- House battery charging current: 35A
- Recommended battery capacity: 300 - 600 Ah
- Protection class: IP21
- Dimensions (h x w x d): 499 x 268 x 141 mm
- Weight: 19 kg
-

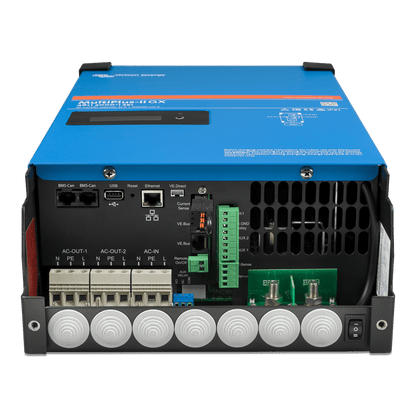

Battery connection: M8 bolts
Installation and connection
Before installation, check the battery voltage, continuous and peak power, cable cross-section, and main fuse. Mount the inverter in a dry, secure, and well-ventilated location. Work on 230V installations must be carried out by a qualified person.
Important points to consider
Match the product to the entire installation. Before commissioning, check the polarity, protection, cable connections, and settings. If in doubt, have the work carried out or checked by a qualified installer.
Technical data & manufacturer document
- Battery voltage
- 48 V
- Power (25°C)
- 3000 VA · 2400 W
- Max. charging current
- 35 A
Continuous inverter power at 25°C. VA and W are different quantities; the peak power is not shown here. The charging current refers to the main battery under the manufacturer's conditions, not the AC pass-through current or the optional starter battery output. Power and charging current may decrease at higher temperatures or with limited AC power supply.
View the manufacturer document ↗
