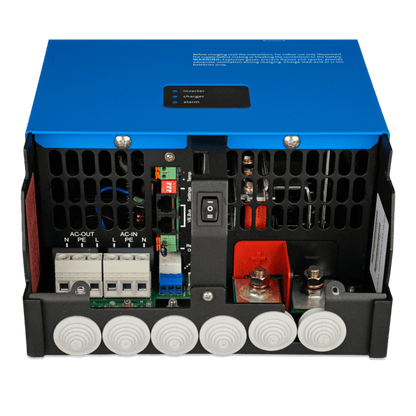

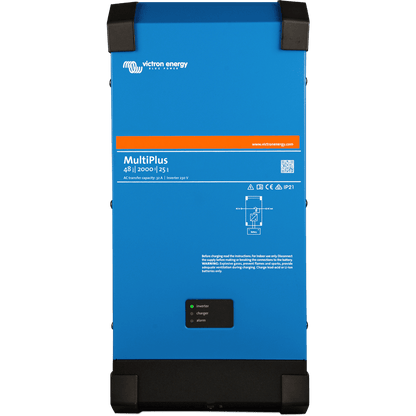

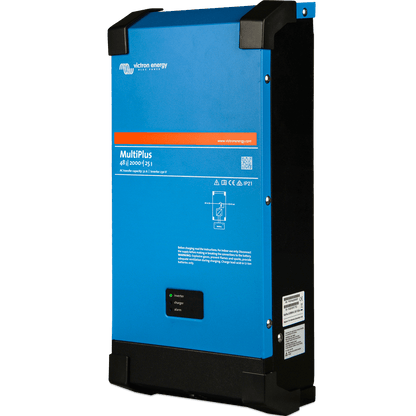

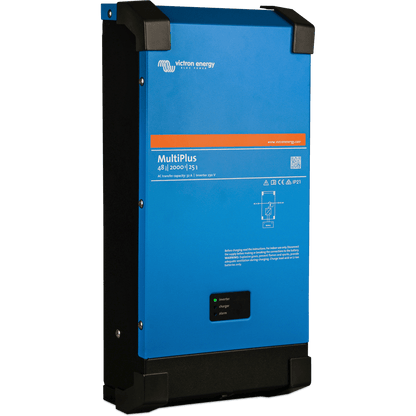

Victron Multiplus 48/2000/25-32

The Victron MultiPlus 48/2000/25-32 is a versatile 48V inverter/charger combination, ideal for off-grid applications such as campers and boats. With a power rating of 2000VA (1600W), a powerful 25A battery charger, and the PowerAssist and PowerControl functions, this unit offers everything you need for reliable power. The compact design and high-quality components make this inverter/charger a perfect choice for DIY builders and owners looking to improve their electrical system.

Installation:

• Use 25mm² battery cables (not included) for a safe connection.
• Ensure adequate ventilation to prevent overheating, especially during intensive use.

Use:

• With the Digital Multi Control, you can easily set the maximum shore or generator current.
• The MultiPlus adjusts the charging process based on available power, so other devices receive priority.
• Settings can be quickly adjusted via the VictronConnect app or DIP switches.

Choose the Victron MultiPlus 48/2000/25-32 for a reliable, powerful power solution in your camper or boat! Have questions? Contact us for more information.

• Proven reliability: The Victron MultiPlus series uses full-bridge plus toroidal transformer technology, ensuring high reliability even under demanding conditions.
• PowerControl: This allows you to easily set the maximum generator or shore current to prevent your power source from being overloaded. The system only uses the remaining power to charge the battery.
• PowerAssist: PowerAssist ensures that the power source, such as shore or generator power, is supplemented with power from the battery during peak consumption. As soon as consumption drops, the MultiPlus charges the battery again.
• High starting power: The MultiPlus is capable of starting devices with a high inrush current, such as LED lights or power tools, without any problems.
• Search mode: In 'search mode', the inverter consumes up to 70% less energy when there is no or low load by switching itself off and periodically checking if power is needed.
• Programmable relay: The standard relay can be set as an alarm relay, which warns in the event of a problem such as overheating or low battery voltage.
• Remote monitoring and control: Optional remote monitoring and control are available via the VRM app and website, with support for various devices. A GX controller is required for these functions.

• Input voltage: 48VDC / 230VAC
• Output voltage: 230VAC
• Output power: 2000VA / 1600W
• Peak power: 3500W
• House battery charging current: 25A
• Starter battery charging current: 1A
• Maximum switching current: 32A
• Recommended battery capacity: 200 - 400 Ah
• Protection class: IP 21
• Dimensions (h x w x d): 506 x 236 x 147 mm
• Weight: 15.5 kg
• Battery connection: M8 bolts
