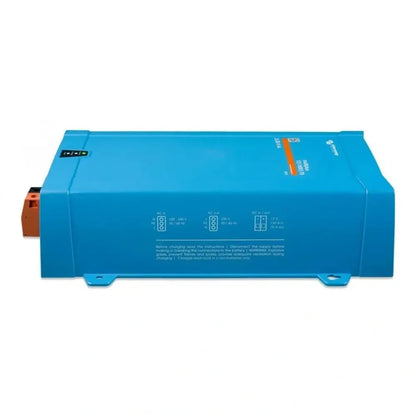

Victron Multiplus 24/1600/40-16
Victron Multiplus 24/1600/40-16
In stock
Couldn't load pickup availability
Niet op voorraad in Raalte; afhalen kan na bestelling. Bestel vooraf; we laten weten zodra het klaarligt.
For those looking for a powerful and reliable energy solution for intensive use, the Victron MultiPlus 24/1600/40 is the perfect choice. This inverter/charger combination offers sufficient power to use multiple heavy-duty appliances simultaneously without compromising performance.
Product information and features
Description ▾
Victron MultiPlus 24/1600/40: Versatile Inverter/Charger for Intensive Use
Installation:
- Use 35mm² battery cables for the best connection and performance.
- Ensure good ventilation to prevent overheating and extend the lifespan of the MultiPlus.
Use:
- Thanks to the PowerAssist function, you can effortlessly handle peak loads by using additional power from the battery.
- The device can also operate in a three-phase system for even more flexibility.
Order the Victron MultiPlus 24/1600/40 for your camper or boat and enjoy maximum flexibility and reliability!
Features ▾
Key Benefits:
- Proven Reliability: The Victron MultiPlus is designed with technology that has been operating reliably for years. This means that the device is resistant to short circuits and overheating, making it safe and durable to use.
- PowerControl: This feature helps prevent your power source, such as a generator or shore power connection, from becoming overloaded. The MultiPlus ensures that other devices take priority over the available power, and only uses the remaining power to charge the battery.
- PowerAssist: PowerAssist ensures that your power source, such as a generator or shore power, can deliver more power when needed. During a peak in power consumption, the MultiPlus automatically switches in power from the battery, and recharges it when consumption decreases.
- High Starting Power: The MultiPlus can easily handle devices with a high starting current. Think of LED lights, halogen lights, or power tools that require a lot of power when switched on.
- Search Mode: This feature helps save energy. When there is no or little power consumption, the MultiPlus switches itself off and checks every two seconds if power is needed again. This reduces power consumption when there is no load by approximately 70%.
Specifications ▾
- Input voltage: 12VDC
- Output voltage: 230VAC
- Output power: 1600VA / 1300W
- Peak power: 2800W
- House battery charging current: 40A
- Starter battery charging current: 1A
- Recommended battery capacity: 200 - 400 Ah
- Protection class: IP 21
- Dimensions (h x w x d): 470 x 265 x 120 mm
- Weight: 10.2 kg
Installation and connection
Before installation, check the battery voltage, continuous and peak power, cable cross-section, and main fuse. Mount the inverter in a dry, secure, and well-ventilated location. Work on 230V installations must be carried out by a qualified person.
Important points to consider
Match the product to the entire installation. Before commissioning, check the polarity, protection, cable connections, and settings. If in doubt, have the work carried out or checked by a qualified installer.
Technical data & manufacturer document
- Battery voltage
- 24 V
- Power (25°C)
- 1600 VA · 1300 W
- Max. charging current
- 40 A
Continuous inverter power at 25°C. VA and W are different quantities; the peak power is not shown here. The charging current refers to the main battery under the manufacturer's conditions, not the AC pass-through current or the optional starter battery output. Power and charging current may decrease at higher temperatures or with limited AC power supply.
View the manufacturer document ↗
