Victron Multiplus 24/1200/25-16

Description

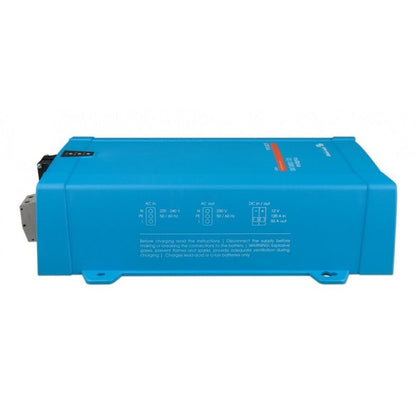

Victron MultiPlus 24/1200/25-16 Inverter/Charger - Pure Sine Wave, 1200VA, 25A Charger

The Victron MultiPlus 24/1200/25-16 is an advanced inverter/charger combination specifically designed for off-grid applications such as RVs and boats. This powerful unit integrates a pure sine wave inverter with a continuous output of 1200VA (1000W), an adaptive battery charger with a 25A charging current, and a fast AC transfer switch, all housed in a compact IP 21 enclosure. Ideal for both DIY builders and owners who want to optimize their power supply.

Installation:

• Use a 25mm² battery cable (not included) for connection.
• Install the MultiPlus in a well-ventilated area to prevent overheating.

Usage:

• With the Digital Multi Control panel, you can set the maximum generator or shore power.
• The MultiPlus takes other power consumers into account and uses the remaining power to charge the battery.
• Settings can be adjusted via DIP switches or the VictronConnect app.

Add the Victron MultiPlus 12/1200/50-16 to your cart today and experience the ultimate energy solution for your RV or boat! Do you have any questions? Please contact us for more information.

Features

Key Benefits:

• Proven Reliability: The Victron MultiPlus is designed with technology that has been reliably operating for years. This means the device is resistant to short circuits and overheating, making it safe and durable to use.
• PowerControl: This feature helps prevent your power source, such as a generator or shore power connection, from being overloaded. The MultiPlus ensures that other appliances take priority over the available power, and only uses the remaining power to charge the battery.
• PowerAssist: PowerAssist ensures that your power source, such as a generator or shore power, can deliver more power when needed. During a peak in power consumption, the MultiPlus automatically supplements with power from the battery, and recharges it when consumption drops.
• High Start-up Power: The MultiPlus can easily handle devices with high start-up current. This includes LED lamps, halogen lamps, or power tools that require a lot of power when switched on.
• Search Mode: This feature helps save energy. If there is no or low power consumption, the MultiPlus switches itself off and checks every two seconds if power is needed again. This reduces power consumption at no load by approximately 70%.

Specifications

• Input voltage: 12VDC
• Output voltage: 230VAC
• Output power: 1200VA / 1000W
• Peak power: 2400W
• House battery charging current: 25A
• Starter battery charging current: 1A
• Recommended battery capacity: 125 - 250 Ah
• Protection class: IP 21
• Dimensions (h x w x d): 406 x 250 x 100 mm
• Weight: 8.2 kg
