  • Victron Lynx Smart BMS 1000 NG M10
1 1

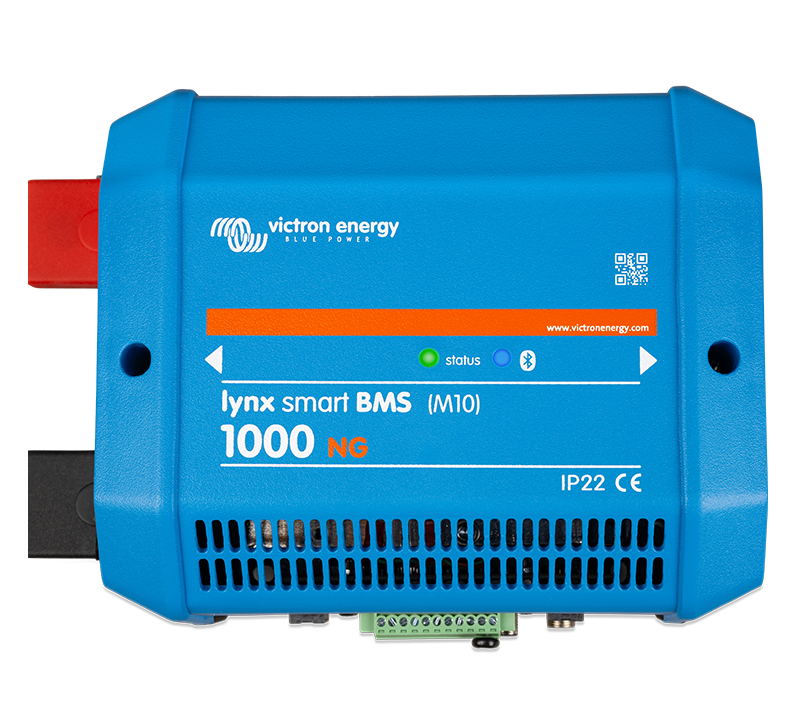

Victron Lynx Smart BMS 1000 NG (M10)

Victron Lynx Smart BMS 1000 NG (M10)

In stock

€1.017,00 EUR
€1.175,00 EUR €1.017,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Secure payment
  • American Express
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
Specialist in motorhome electrics Practical knowledge and experience since 2014
Carefully selected Components we trust and use ourselves
Personal Support One point of contact for questions about your order

The Victron Lynx Smart BMS 1000 NG (M10) is the central battery management and protection system for Victron Lithium NG batteries. It combines a BMS, main contactor, battery monitoring and communication in a single Lynx module.

The 1000A version is intended for large and very highly loaded camper, marine and off-grid installations.

Why the Lynx Smart BMS 1000 NG? ▾
  • Main current capacity up to 1000A.
  • Monitoring of state of charge, voltage, current and battery data.
  • Pre-alarm and safe shutdown in unsafe cell conditions.
  • Bluetooth configuration and diagnostics via VictronConnect.
  • VE.Can integration with GX devices and the VRM Portal.
  • Modular M10 connection within the Lynx system.
Specifications & dimensions ▾
Current rating
1000A
Battery type
Victron Lithium NG
Lynx connection
M10
Monitoring
Bluetooth, VE.Can, GX and VRM
Dimensions
230 × 180 × 100 mm
Weight
2.7 kg
Battery and system compatibility ▾

The Lynx Smart BMS NG is designed for Victron Lithium NG batteries. The battery cables for cell monitoring are connected to the BMS connections; with multiple batteries, the BMS cables are daisy-chained according to the Victron instructions.

  • Choose the BMS current rating based on the maximum charging and discharging current.
  • Combine with Lynx Distributor modules for fused DC distribution.
  • Use a GX device when extensive local and remote monitoring is desired.
Installation & safety ▾
  • Use suitable M10 cable lugs for all DC connections.
  • Size the main fuse, cables and busbars for the maximum system current.
  • Follow the prescribed order of cable lug, rings and nut.
  • Connect BMS and communication cables before commissioning the system.
  • Check all settings in VictronConnect during commissioning.
A high-current lithium system requires a careful electrical and mechanical design. Have the installation checked if in doubt.
What else do you usually need? ▾
  • One or more Victron Lithium NG batteries.
  • Suitable Lynx Distributor modules and MEGA fuses.
  • Main fuse, battery cables and M10 cable lugs.
  • Suitable charging equipment and inverter/charger.
  • Optionally Cerbo GX or another GX device for VRM monitoring.
FAQ ▾

Can I use this BMS with a SuperPack NG?
This is normally not necessary: the SuperPack NG has an integrated BMS. The Lynx Smart BMS NG is intended for the modular Lithium NG batteries.

When do I choose 1000A?
The choice depends on the maximum current of inverters, charging sources and DC consumers. The fuses and cables must be matched to the same design current.

Can I view the system remotely?
Yes. Via VE.Can, a GX device can send the data to the VRM Portal.
