USB Flush Mount Socket 2x 2.4A – Total Output 4.8A for 12V/24V Systems

This USB flush mount socket with a dual USB-A port is a simple and reliable solution for charging phones, tablets, and other USB devices on the go. With a maximum combined output of 4.8A, this socket is perfect for campers, boats, and other 12V or 24V installations.

Key Features

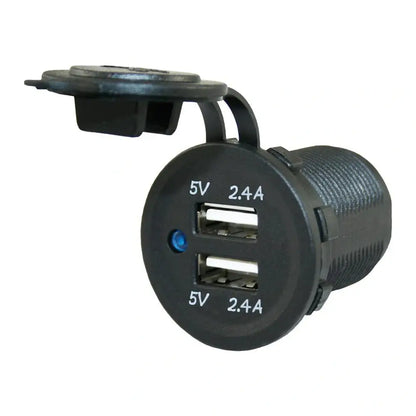

• 2x USB-A ports: Each max 2.4A
• Total output: 5V / 4.8A
• Suitable for: 12V and 24V installations
• Includes: Standard mounting nut and protective cap
• Mounting hole: Ø30 mm
• Splash-proof: IP66 when cap is closed

Application

Ideal for charging two devices simultaneously, such as:

• Smartphones
• Tablets
• Power banks, cameras, navigation systems

This USB charger offers standard charging speeds without Quick Charge or USB-C functionality. For fast charging or laptop charging, you might consider a more advanced model:

• USB-C fast charger 18W/36W
• USB-C fast charger 36W/100W

Installation and recommended cable thickness

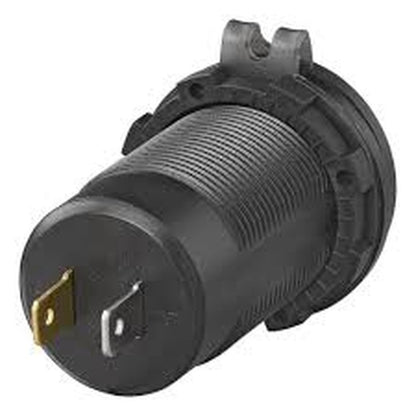

Drill a 30 mm hole and place the socket in your panel or dashboard. Connect the power supply using spade terminals to your 12V or 24V installation.

• Total cable length up to 4 meters: minimum 1.0 mm²
• Cable length between 4–12 meters: minimum 1.5 mm²

Tip: Always add the positive and negative cables together to determine the total length for your cable thickness.

Frequently Asked Questions (FAQ)

Does this model support fast charging?
No, this is a standard USB charger without Quick Charge or Power Delivery. It charges fast enough for daily use but is not optimized for large devices.

Can I charge two devices simultaneously?
Yes, both ports each deliver 2.4A, with a combined maximum output of 4.8A.

Is this waterproof?
Yes, when the cap is closed, the product meets IP66. This means it is splash-proof and suitable for installation in campers, boats, and service vehicles.

What is included?
1x USB flush mount socket, 1x mounting nut, 1x protective cap

Reliable basic charger for on the go

Are you looking for a simple solution to charge multiple devices simultaneously in your 12V or 24V installation? Then this model is the right choice. Compact, durable, and easy to install – without unnecessary features, but with reliable performance.
