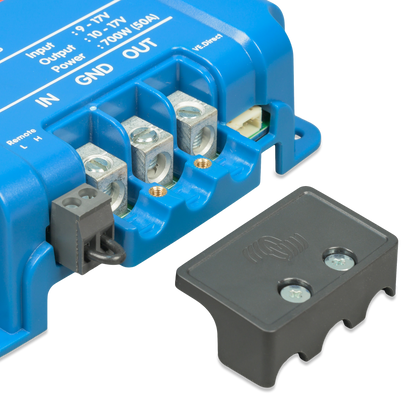

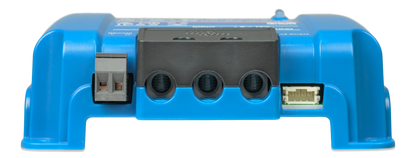

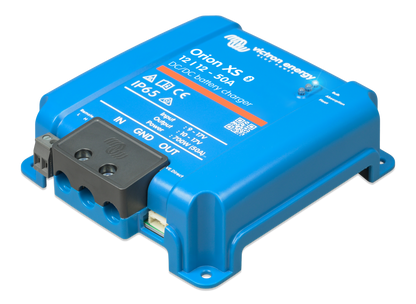

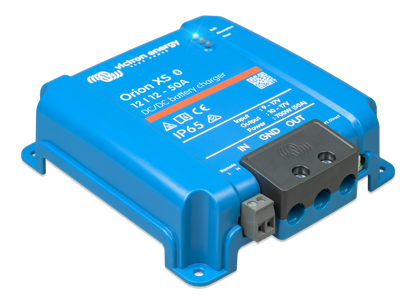

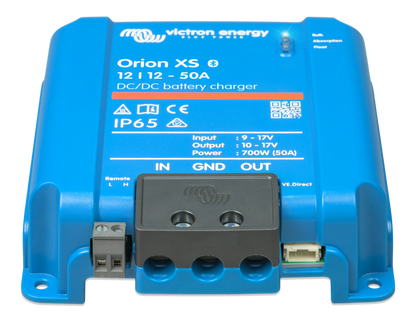

The Victron Orion XS 12/12-50A is a powerful and highly efficient DC-DC battery charger for vehicles and boats with a 12V starter battery and a 12V service battery. The charging current and charging settings can be adjusted via VictronConnect to suit the installation and battery.
Key features
Adjustable charging current up to 50A
Suitable for vehicles with a conventional or smart alternator
Programmable charging algorithm for different battery types
Bluetooth for configuration and monitoring via VictronConnect
Electronic protection against over-temperature, overload, short circuit and more
Remote on/off connection
Application
The Orion XS charges the service battery in a controlled manner from the starter battery and alternator. This keeps the two battery systems functionally separate and prevents service loads from unintentionally discharging the starter battery.
Installation
Use battery cables and fuses suitable for the set charging current and cable length. Mount the charger in a well-ventilated location and set the charging profile to match the service battery in use. For 25 mm² cable with compact terminals, a suitable cable lug may be required.
Configuration with VictronConnect
Via the VictronConnect app, you can check and adjust the charging voltage, maximum charging current, engine stop detection and various protection settings, among others.
Technical data & manufacturer document
Laadstroom instelbaar van 1 tot 50 A. Ingangsspanning 9–17 V; uitgangsspanning instelbaar van 10–17 V.
Victron geeft 700 W op bij een uitgangsspanning van 14 V en 50 A. Het werkelijke vermogen hangt af van spanning en stroom. De continue opgave geldt tot 40°C bij voldoende koeling; bij hogere temperaturen wordt het vermogen teruggeregeld.
