EpEver PWM ViewStar 50/20

Features

• 3-stage intelligent PWM charging: Bulk, Boost/Equalize, Float
• Supports 3 battery types: Sealed, Gel, and Flooded

• Dual USB ports for convenient charging of electronic devices
• LCD display for clear information display
• Multiple load programs for various applications
• Uses high-quality, internationally renowned components for high reliability
• Comprehensive electronic protection to protect your system
• Dutch manual available (online): for easy installation and operation.

Specifications:

• Charge controller model: VS2024AU
• Max. power at 12V (W): 240
• Max. power at 24V (W): 480
• Max. current (A): 20
• Max. voltage (V): 50
• Output voltage (DC): 12V/24V


• Dimensions (l x w x h / cm): 16 x 9 x 5
• Weight (kg): 0.35
• Port size cables (mm²): 10

Description

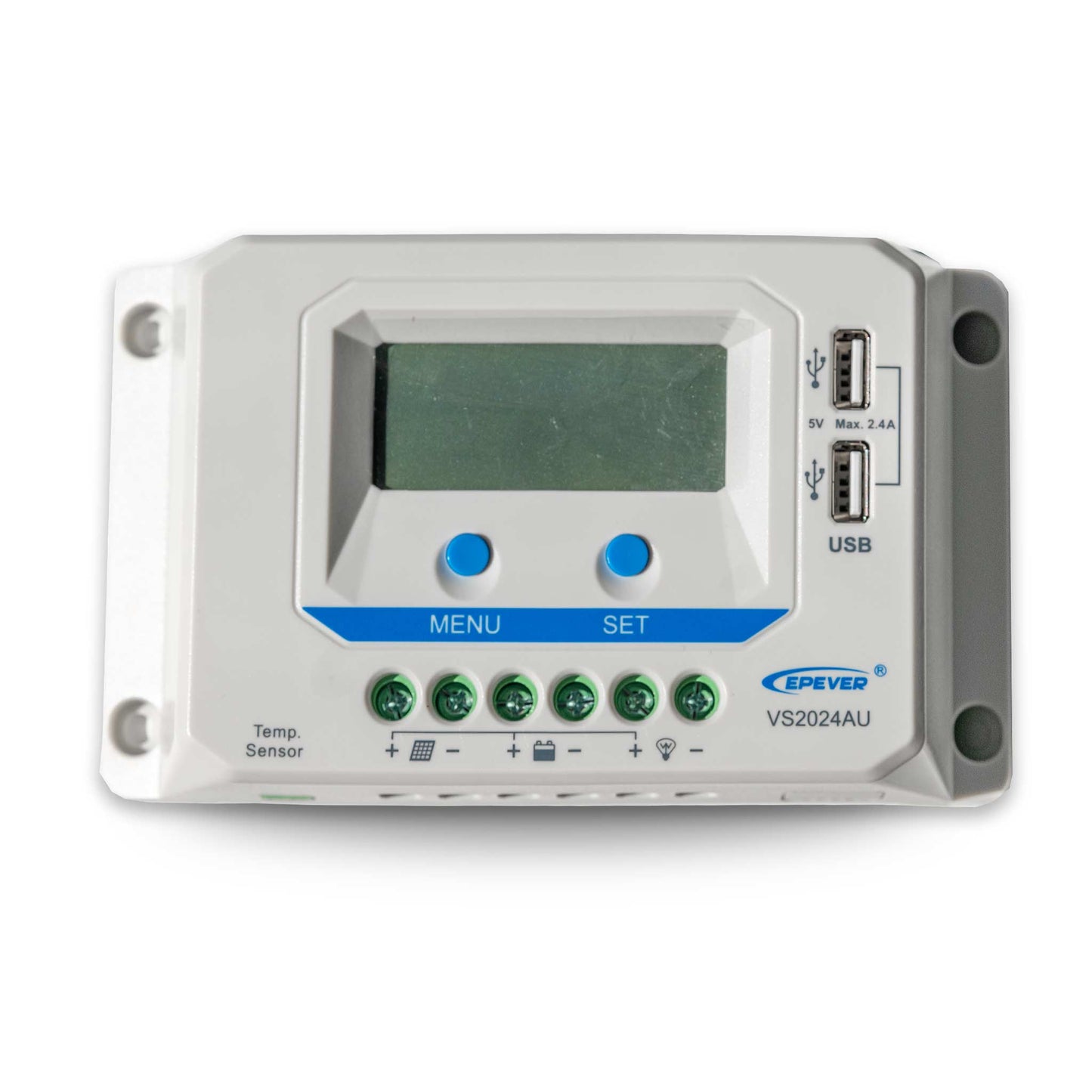

The EpEver PWM ViewStar 50/20 is a reliable and cost-effective PWM charge controller with an LCD display and two USB ports. This series is ideal when the voltage difference between the solar panel and the battery is not large. It is widely applicable for various household energy systems.

For more information about the charge controller, please consult the online installation manual for the VS-AU series PWM chargers.
