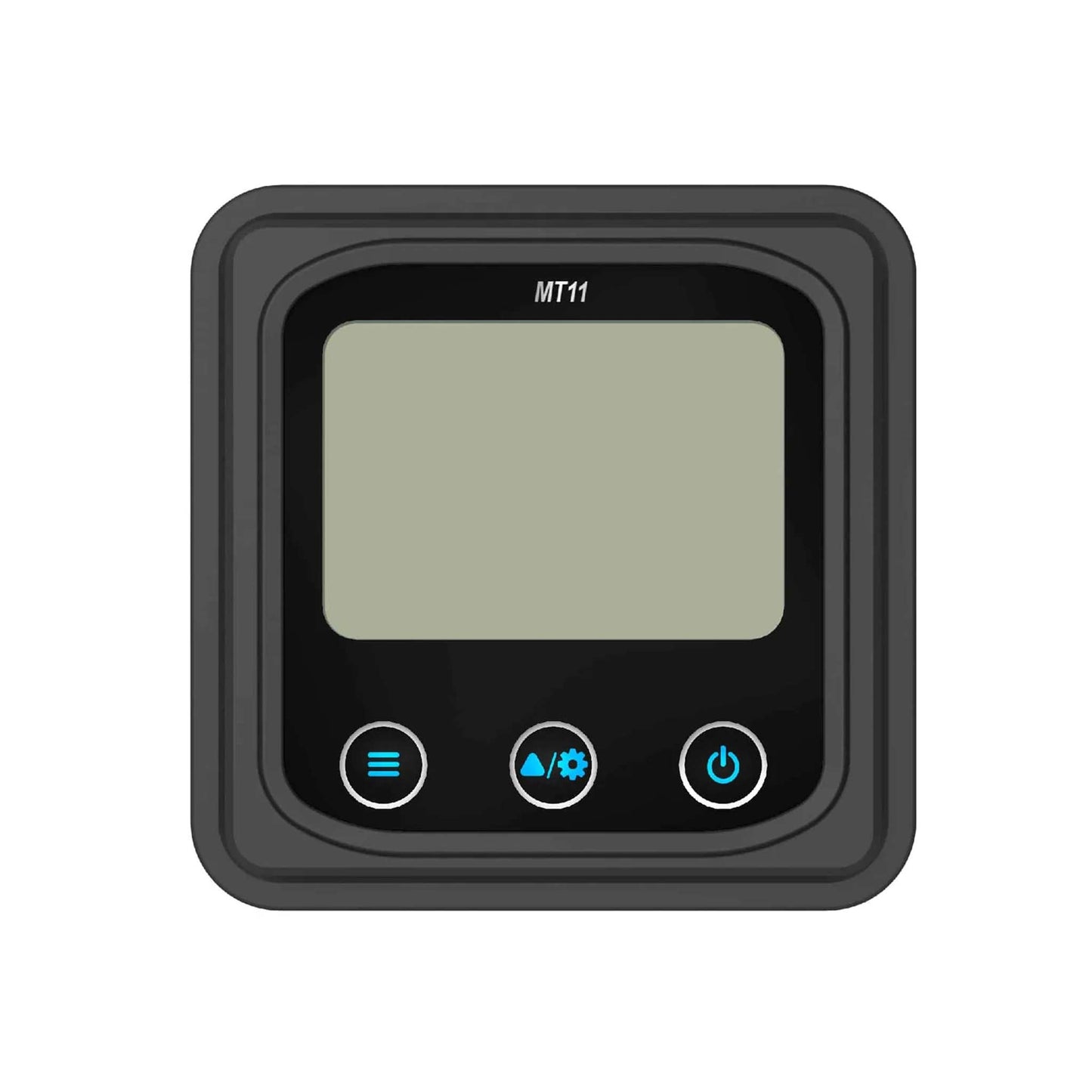

EpEver MT11 monitor
EpEver MT11 monitor
6 in stock
Couldn't load pickup availability
Direct verzendbaar of meestal binnen 24 uur af te halen.
The MT series remote meter is an accessory compatible with the DuoRacer series MPPT charge controllers. It can monitor the operating data and status of the charge controller via the external display. The monitor can display charger values, set the battery type and temperature unit, and reset generated energy. It is suitable for RVs, campers, boats, and more.
Overview
The MT11 monitor provides a convenient way to manage the performance of your DuoRacer charge controller. Thanks to its multi-functional LCD display and simple operation, you can view and adjust your system's data and status anytime, anywhere.
Features
- Automatic identification and display of the type, model, and relevant values of DuoRacer charge controllers
- Real-time display of operational data and working status of connected devices in digital, graphical, and textual forms on a large multi-functional LCD
- Three touch buttons for easy and quick operation
- No external power supply required; the charge controller powers the MT11
- Can display charge controller values, set battery type and temperature unit, and reset generated energy
- Real-time display of fault information from connected devices
- Standard communication cable length is 1.5 meters
- Longer communication cable of 5 meters available for separate purchase
Mechanical Parameters
| Parameter | Details |
|---|---|
| Applicable to model | DuoRacer series |
| Self-consumption (ON) | 13mA/5Vdc |
| Self-consumption (OFF) | 4mA |
| Communication method | RS485 |
| Communication port | 3.81-4P |
| Dimensions | 114×114mm |
| Base cover dimensions | 98.4×98.4mm |
| Enclosure | IP20 |
| Ambient temperature | -20℃~+70℃ |
| Storage temperature range | -20℃~+70℃ |
| Cables | CC-RS485-RS485-3.81-4P-150(1.5m) (standard included) CC-RS485-RS485-3.81-4P-500(5m) |
| Weight | 0.11kg |
More information: Visit the EPEVER website
