12V Cigarette Socket – Flush Mount Outlet for 12V/24V systems

With this universal 12V cigarette socket, you can easily add a reliable 12V connection to your RV, boat, van, or trailer. The socket is suitable for standard cigarette plugs and accessories, and delivers up to 20A at 12V and 10A at 24V.

Key features

• Maximum current: 20A at 12V / 10A at 24V
• Voltage: 12V or 24V DC
• Universal connection: Suitable for all standard cigarette plugs

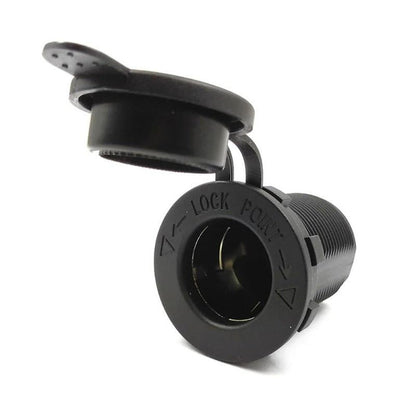

• Includes: Protective cap and plastic mounting nut
• Housing: Impact-resistant plastic
• Mounting hole: Ø29–30 mm

Application

Ideal for connecting:

• Compressor cooler boxes
• 12V fans, pumps, or lighting
• Phone chargers and USB adapters with cigarette plugs

Widely used in RVs, boats, trucks, buses, off-road vehicles, and DIY projects.

Installation and cable advice

For a safe installation, it is important to choose the correct cable thickness based on the current consumption and the distance to your power supply (battery or fuse box).

• For a maximum of 10A: use at least 1.5 mm² (total cable length up to 4 meters)
• For 15–20A: use at least 2.5 mm² or 4 mm² for longer distances (4–12 meters)

Always secure the connection with a fuse (20A at 12V / 10A at 24V) as close as possible to the power source.

Frequently Asked Questions (FAQ)

Is this socket suitable for continuous use?
Yes, provided it is correctly connected and fused, this product is suitable for long-term use of cooler boxes, compressors, or lighting.

Can I also use this in a 24V system?
Yes, the product is suitable for both 12V and 24V installations. The maximum current is then 10A.

What is included in the package?
1x cigarette socket, 1x mounting nut, 1x protective cap

Is the socket splash-proof?
Yes, with correct use of the rubber cap, the socket is protected against splash water and dust. Not suitable for direct exposure to rain or submersion.

Reliable 12V connection for every vehicle

This cigarette socket is a versatile solution for connecting 12V devices in RVs, boats, or vehicles. Easy to install, robustly designed, and suitable for daily use – a must-have in any mobile installation.
