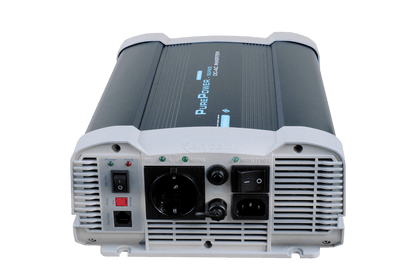

Xenteq PurePower Switch Inverter 12V 2000W

• 230V available in your camper without fixed shore power: laptop, chargers, cameras, small appliances.
• Use e-bike chargers or tool chargers (pay attention to the total power).
• Kitchen appliances up to approx. 2000W (situation-dependent), as long as your battery pack and cabling can handle it.
• Leave everything connected and automatically switch between shore power and battery inverter.

Heating appliances (kettle, hairdryer, air fryer) often require a lot of power. Are you unsure if 2000W is suitable for your use and battery? Send us your appliances (Watt) and battery data, and we will help you choose quickly.

The PurePowerSwitch has an internal transfer relay (bypass). As soon as shore power is available, the 230V output can automatically switch to mains voltage. This means you don't need to install a separate transfer box.

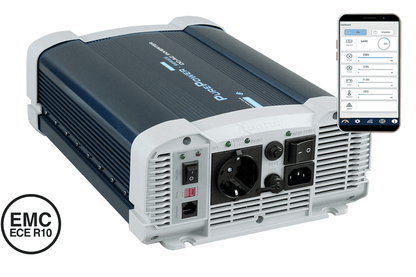

• Real-time readout via the PurePower app.
• Stand-by mode (useful if you temporarily don't need 230V).
• Adjustable parameters, such as undervoltage monitoring and a restart timer (charge first, then switch on again).

Want extra operating convenience? This inverter can be extended with a remote control: PPR-1 or PPR-3.

The datasheet mentions app support and compatible remote controls. (Hardware V1.01 / Software V1.06)

• Battery connection: 2× M6 bolts on the inverter (for this 2000W model).
• Included battery cables: 80 cm, 25 mm² with cable lugs.
• Secure the battery cable with a suitable external fuse (as close to the battery as possible). Make sure you can de-energize the inverter for maintenance (via the fuse, a DC circuit breaker, or the main switch of your system).
• Keep cables short and securely fastened: at high loads, currents in 12V systems increase rapidly.
• Ventilation: the inverter has active cooling (fan). Place it freely and not in a sealed warm space.

Would you like us to check cable thicknesses, fuse values, and placement? Send us a photo of your current setup + battery type + inverter ↔ battery distance.

• Model: PPS 2000-212
• Input (nom.): 12 Vdc (input voltage range 10.0–16.5 Vdc)
• Output: 230 Vac ± 5% (50 Hz ± 1%)
• Waveform: pure sine wave
• Power: 2000 W continuous / 4000 W peak
• Soft-start: yes (3–5 sec)
• Efficiency: max. 92%
• Protections (input): low input voltage warning (acoustic), under and overvoltage
• Protections (output): overload, temperature
• No-load (on): approx. 1.2 A to approx. 1.9 A (depending on mains voltage/conditions)
• No-load (stand-by): approx. 0.08 A
• No-load (sleep mode): approx. 0.1–0.2 A
• Bypass / transfer times (indicative):
  • Priority "MAINS": mains → inverter 40–65 ms, inverter → mains 10–20 ms
  • Priority "INV": mains → inverter 2–10 ms, inverter → mains 45–75 ms
• USB output: no
• Cooling: fan
• Environment: 0–40°C, 20–90% RH (non-condensing)
• Dimensions (l×w×h): 33.3 × 23.5 × 10.9 cm
• Weight: 6 kg

No-load values are measured at 12.6 V and may vary due to battery voltage, battery quality, and temperature. When there is no mains power, the no-load current may be higher.

• Help with the right choice: prevent "too small" or "unnecessarily large".
• Practical installation advice (fusing, cables, placement, 230V distribution).
• Fast support for questions about bypass/priority and app settings.
• One point of contact for delivery and service.

Send us these 3 things, and you'll quickly receive tailored advice:

• Battery: type (AGM/LiFePO₄), capacity (Ah), and 12V system
• Which 230V appliances you want to use (with Wattage)
• Inverter ↔ battery distance (approximate)

Tip: combine this inverter with the correct fuse holder, main switch, and cable set. Then it's not just "working," but also safe and trouble-free.
