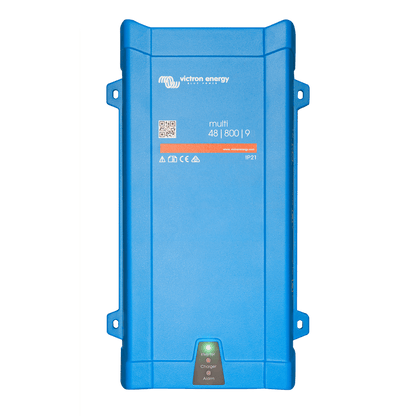

Victron Multiplus 48/800/9-16
Victron Multiplus 48/800/9-16
In stock
Couldn't load pickup availability
Description
Victron MultiPlus 48/800/9-16 Multifunctional Inverter/Charger Combination
Discover the power and versatility of the Victron MultiPlus 48/800/9-16, an advanced pure sine wave inverter and battery charger in one compact housing. This device is perfect for both DIY campervan builders and boat owners looking for a reliable energy solution.
The Victron MultiPlus 48/800/9-16 combines a powerful pure sine wave inverter, an advanced battery charger with adaptive charging technology, and an ultra-fast AC transfer switch. These features make it a versatile device that meets the demands of modern off-grid energy solutions.
Installation:
- Use a 10 mm² battery cable (not included) for connection.
- Install the MultiPlus in a well-ventilated area to prevent overheating.
- Settings can be adjusted via DIP switches or the VictronConnect app.
Usage:
- With the Digital Multi Control panel, you can set the maximum generator or shore power.
- The MultiPlus takes into account other power consumers and uses the remaining power for battery charging.
Add the Victron MultiPlus 48/800/9-16 to your shopping cart today and experience the ultimate energy solution for your campervan or boat! Do you have any questions? Please contact us for more information.
Features
Key Benefits:
- Proven Reliability: The Victron MultiPlus is designed with technology that has been reliably working for years. This means the device is resistant to short circuits and overheating, making it safe and durable to use.
- PowerControl: This function helps prevent your power source, such as a generator or shore power connection, from being overloaded. The MultiPlus ensures that other devices take precedence for available power, and only uses the remaining power to charge the battery.
- PowerAssist: PowerAssist ensures that your power source, such as a generator or shore power, can deliver more power when needed. During a peak in power consumption, the MultiPlus automatically supplements with power from the battery, and recharges it when consumption drops.
- High Startup Power: The MultiPlus can easily handle devices with high startup current. This includes LED lamps, halogen lamps, or power tools that require a lot of current upon switching on.
- Search Mode: This function helps save energy. If there is no or low power consumption, the MultiPlus switches itself off and checks every two seconds if power is needed again. This reduces power consumption at no load by approximately 70%.
Specifications
- Input Voltage: 12VDC
- Output Voltage: 230VAC
- Output Power: 800VA / 700W (continuous)
- Peak Power: 1600W
- House Battery Charge Current: 9A
- Starter Battery Charge Current: 1A
- Recommended Battery Capacity: 45 - 90 Ah
- Protection Class: IP 21
- Dimensions (h x w x d): 311 x 182 x 100 mm
- Weight: 6.4 kg
- Protection Class: IP 21
